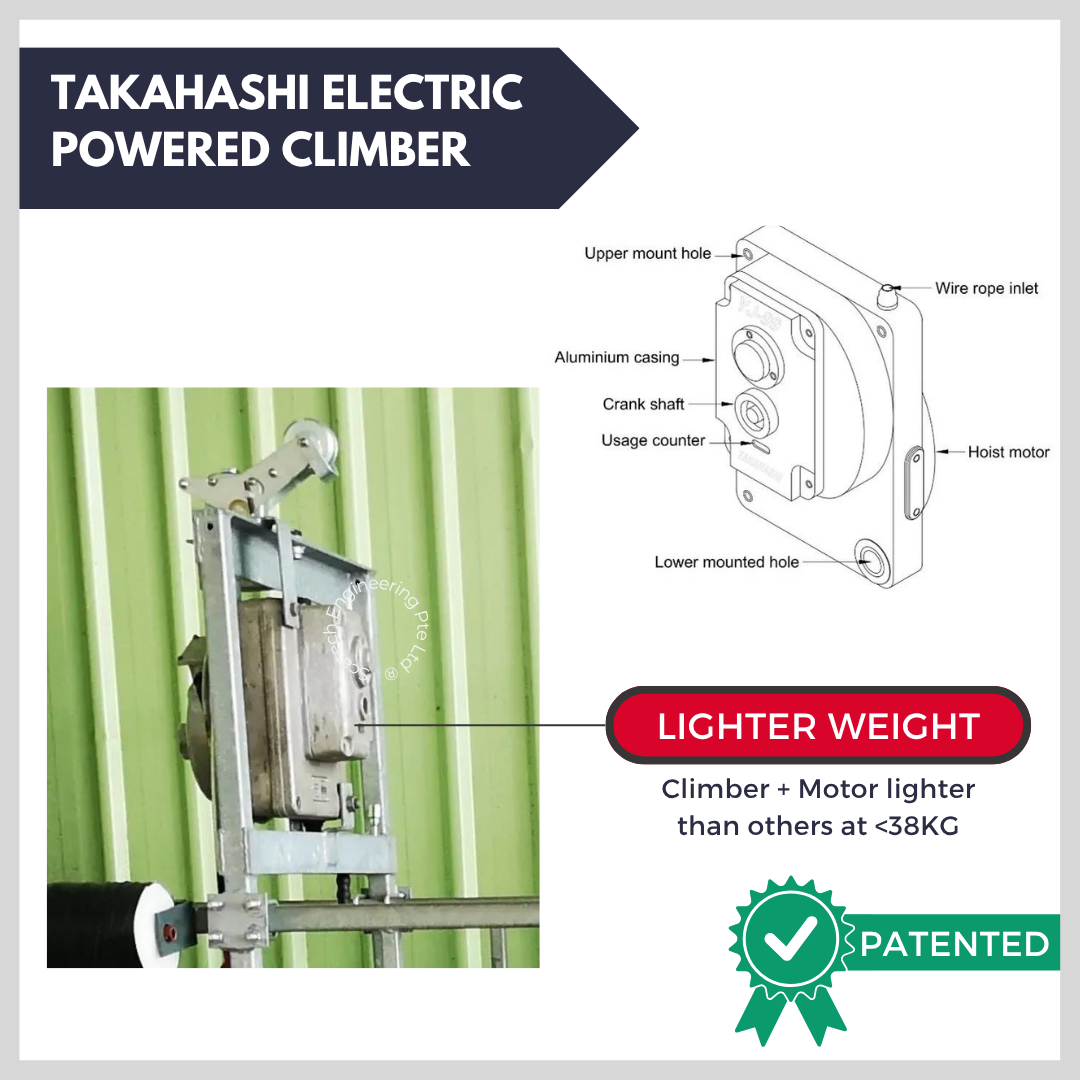

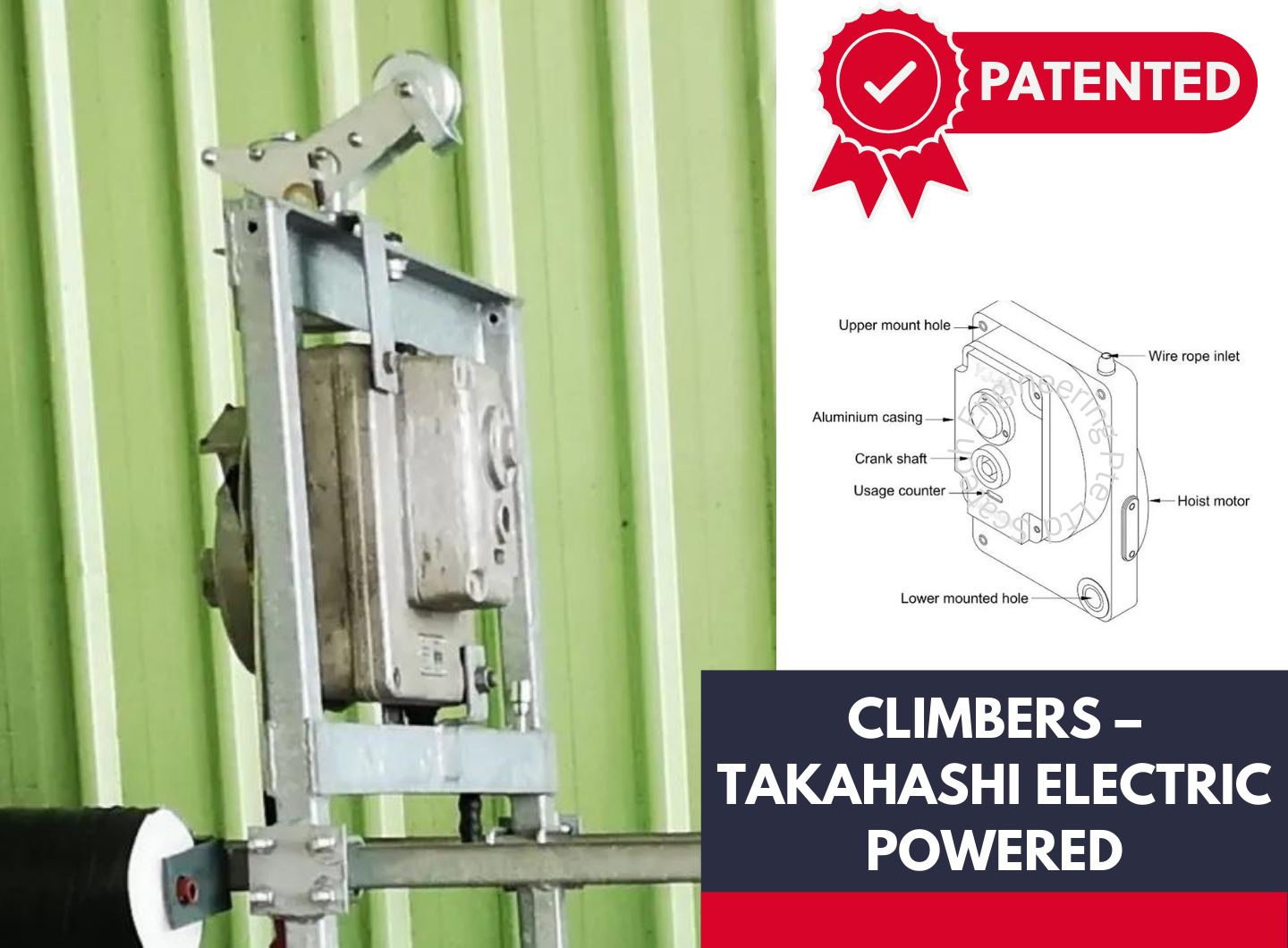

TAKAHASHI Electric Powered Climber
TAKAHASHI Electric Powered Climber
Unique Features
- Climber + Motor lighter than others at <38KG
- Easy to maintain and use
- All shafts are mounted on maintenance free bearing
- Lower rope wear as there is only one sheave
- Built in manual crank descent in case of power failure
- Usage counter installed in each climber to ensure proper maintenance
| Electric Motor | |
| Motor Type | Electric |
| Power Supply | 0.75kW, 400V, 50Hz, 3 phase |
| 0.75kW, 100V, 60Hz, 3 phase | |
| Climber Size | 340mm x 270mm x 300mm |
| Weight | < 38KG (As compared to most brands at >48KG) |
| Lifting Capacity | Up to 500KG Internal load test certificate can be provided. |
| Wire Rope | 8.3mm galvanized steel |
| Lifting Speed | 9m/min |
| Braking | Two brakes are built into Climber. First brake: Electromagnetic brake with 2.0 times braking force. Secondary brake: Mechanical brake with 1.85 times braking force. |
| Industries | All industries except where no sparking is compulsory |
